概述

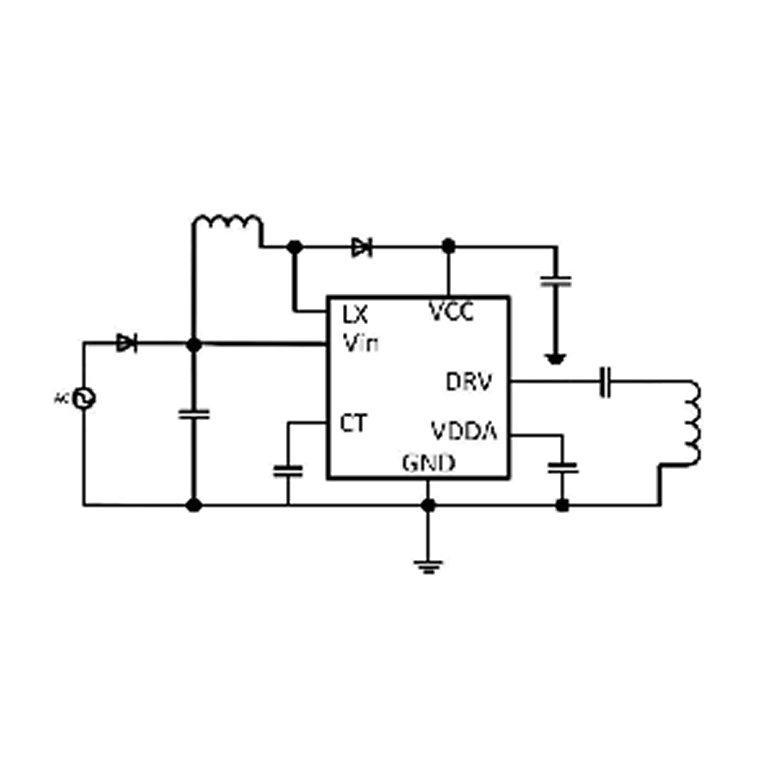

AS5828 is a relay driver with a built-in boost. With the boost, AS5828 can operate down to 1.2v supply or be fed up to 40v directly. AS5828 accumulates the relay energy first and turns on the relay when the energy is enough. AS5828 has a programmable time filter to avoid the unexpected supply voltage glitches.

主要規範

• ●  1.2v start-up voltage

• ●  40V max supply voltage

• ●  Programmable time filter

• ●  Low stand-by power

• ●  Boost current limit protection

• ●  No need to setup boost compensation

應用

• ●  T5 LED Lamp Application Configured to HE 14/21/28/35W and HO 24/39/49/54/58/80W Double Capped / Single Capped

• ●  T8/T10 10W/20W/40W/54W Double Capped with Electronic Ballast

• ●  Support to Dimming Ballast
